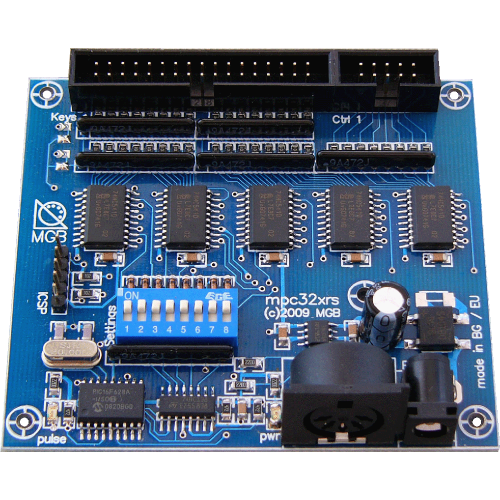

• mpc32xrs MIDI Encoder

32-35 key pedalboard MIDI encoder for passive/positive/negative keying voltage with additional MIDI control

  • 32+8 parallel inputs for key contacts, arranged in scanrow
  • up to 32+3 key contacts
  • 4 dedicated inputs for Program control (Program+1; Program-1; Program+10, Program-10)
  • Sustain control
  • passive (default) or active (optional) keying
  • on-board diode bridge and voltage regulator - just apply 9-12V AC/DC from adapter or battery
  • standard on-board DIN5 connector for MIDI output
  • DIP switch for setting:
    • MIDI channel (1-16)
    • contacts type (normally open/closed)
    • octave transposition (-1,0,1,2 octaves)
    • default Velocity (63/127)
  • New version compatible with Hall sensors contact system available since August 2023. Please check the wiring instructions.
Attributes
Keying voltage Passive (GND). Other - per request.
Power 12V AC/DC
Scanrow 1x 40 (35 keys + 5 discrete)
Settings DIP switch
MIDI Out Yes

Write a review

Note: HTML is not translated!
    Bad           Good

mpc32xrs MIDI Encoder

  • Brand: MIDI Boutique
  • Product Code: mpc32xrs
  • Availability: 10 business days
  • 119.00 €
